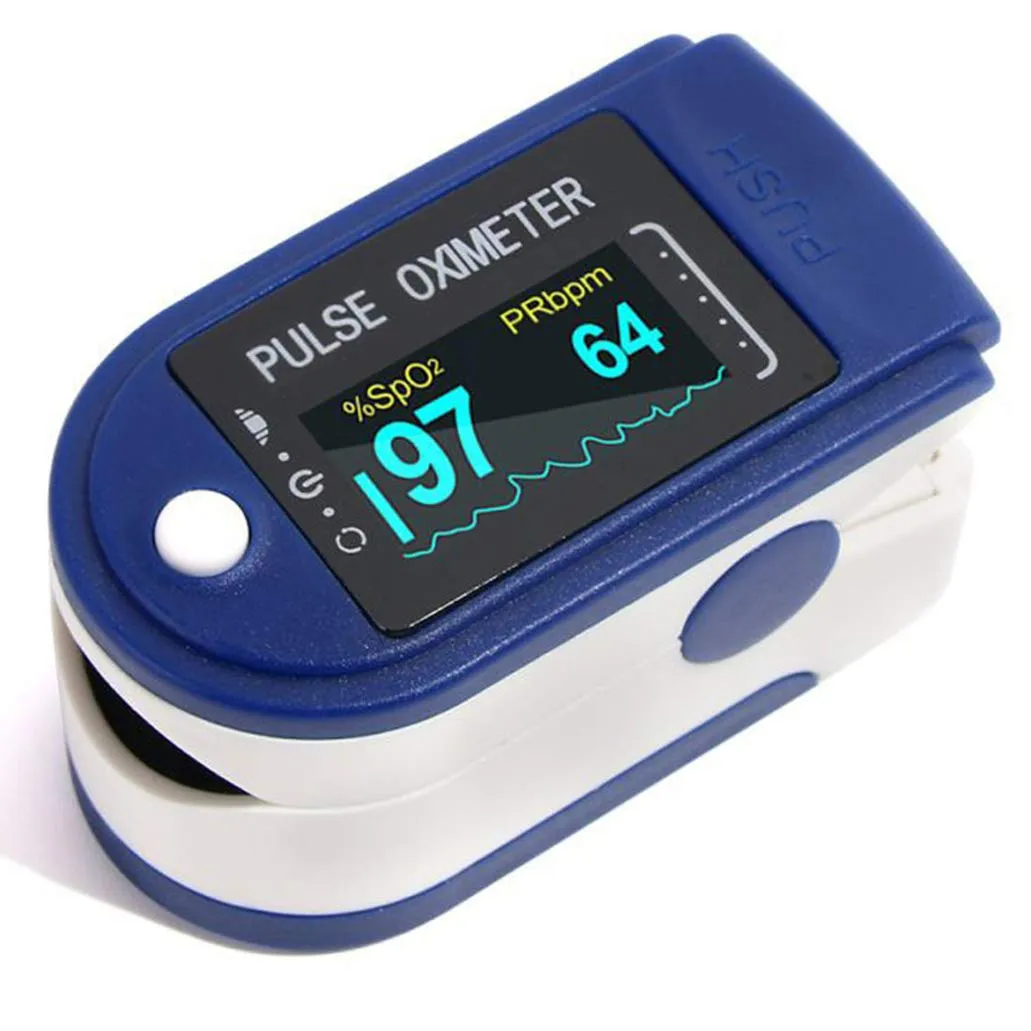

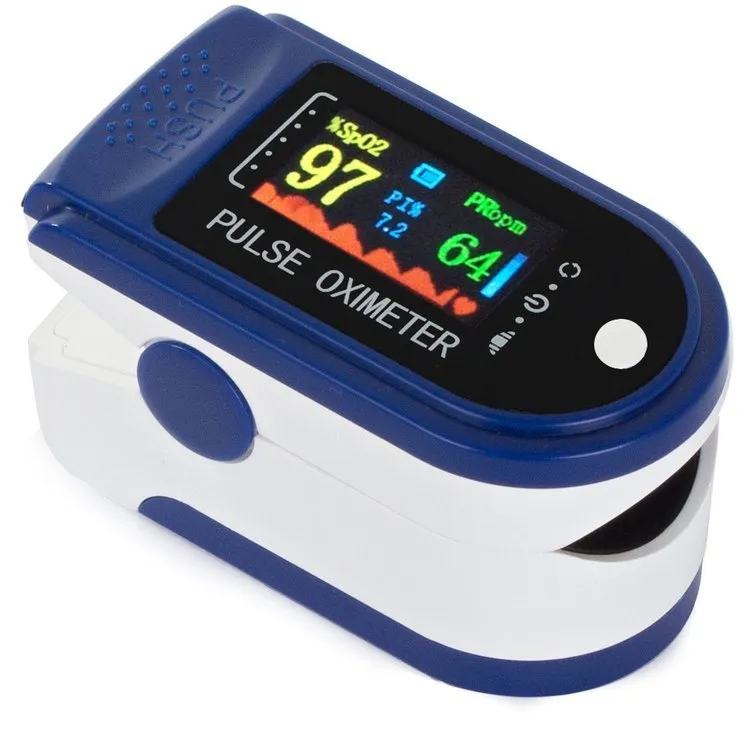

OLED FINGER PULSEXYMETER
MEDICAL PULSOMETER
SATURATION
PULSE
PERFUSION INDEX VALUE

Oximeter Operation:

• Open the clip by pressing the PUSH button at the top
• Place your finger in so that it is parallel to the ground
• Turn on the oximeter with the white button
• Read the obtained measurement
• Remove your finger from the oximeter, the device turns off after a while

Symbol designation:

• % Sp02 - oxygenation of the body - the norm from 94 to 100%
• PR - heart rate - the norm depending on age
• Battery charge indicator
• PI% - Perfusion Index Index

Technical Specifications:

• Quick and easy operation
• Oxygen measurement range: from 70% to 99%
• Oxygenation measurement accuracy in the range of 80% - 99% to 2%
• Oxygenation measurement accuracy in the range of 70% - 99% to 3%
• Heart rate measuring range: 30 to 240 BPM
• Heart rate accuracy: /- 1 BPM
• Automatic shutdown
• The ability to rotate the functions on the display: vertical or horizontal
• Color OLED display
• The device can be used in temperatures from 5 to 40 degrees Celsius
• Power supply: 2 x AAA (not included)
• Battery level indicator
• Lanyard for hanging
• Display dimensions: 22mm x 11mm
• Device dimensions: 55mm x 30mm x30mm

Attention. Dark nail polishes may distort the measurement

Set contains:

• Brand new finger pulse oximeter
• Lanyard for hanging
• Original packaging
